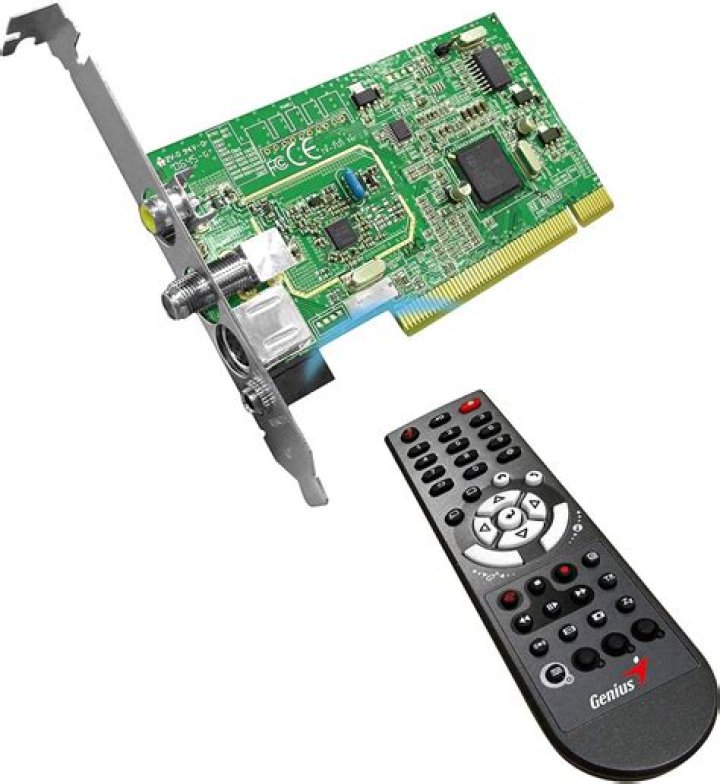

I have installed two separate PCI tv tuner cards in my HP Proliant N40L microserver running Ubuntu 12.04.2 LTS. Both cards are successfully recognized and registered as DVB-T cards
Attempting to use DVB utilities (scan, w_scan) or other software (TVHeadend) returns no signal. There are no errors messages in dmesg (see below). One of the cards has successfully been used in a Windows PC plugged into the same antenna cable, so I feel confident that the hardware and signal are fine.
What are the next steps to troubleshoot this issue?
[ 10.500910] DVB: registering adapter 0 frontend 0 (Realtek DVB-T RTL2832)... [ 10.503616] input: IR-receiver inside an USB DVB receiver as /devices/pci0000:00/0000:00:04.0/0000:03:00.0/0000:04:00.2/usb4/4-1/input/input2 [ 10.503795] dvb-usb: schedule remote query interval to 287 msecs. [ 10.503802] dvb-usb: USB DVB-T Device successfully initialized and connected. [ 10.503833] dvb-usb: found a 'USB DVB-T Device' in warm state. [ 10.503844] dvb-usb: will pass the complete MPEG2 transport stream to the software demuxer. [ 10.507107] DVB: registering new adapter (USB DVB-T Device) [ 10.529997] RTL2832U usb_init_bulk_setting : USB2.0 HIGH SPEED (480Mb/s) [ 10.765649] RTL2832U check_tuner_type : FC0012 tuner on board... [ 10.875461] cx25840 3-0044: loaded v4l-cx23885-avcore-01.fw firmware (16382 bytes) [ 10.907187] tuner 1-0061: Tuner -1 found with type(s) Radio TV. [ 10.925702] xc4000 1-0061: creating new instance [ 10.926262] xc4000: Device not found at addr 0x61 (0xffff) [ 10.926366] xc4000 1-0061: destroying instance [ 10.926529] cx23885[0]: registered device video0 [v4l2] [ 10.926620] cx23885[0]: registered device vbi0 [ 10.926827] cx23885[0]: registered ALSA audio device [ 10.930850] tuner 1-0061: Tuner has no way to set tv freq [ 10.942820] cx23885_dvb_register() allocating 1 frontend(s) [ 10.942824] cx23885[0]: cx23885 based dvb card [ 10.962568] xc4000 2-0061: creating new instance [ 10.963291] xc4000: Successfully identified at address 0x61 [ 10.963293] xc4000: Firmware has not been loaded previously [ 10.971195] DVB: registering new adapter (cx23885[0]) [ 10.971203] DVB: registering adapter 2 frontend 0 (Zarlink ZL10353 DVB-T)... [ 10.971857] cx23885_dev_checkrevision() Hardware revision = 0xa4 [ 10.971865] cx23885[0]/0: found at 0000:02:00.0, rev: 3, irq: 18, latency: 0, mmio: 0xfe600000 [ 11.332565] DVB: registering adapter 1 frontend 0 (Realtek DVB-T RTL2832)... [ 11.334180] input: IR-receiver inside an USB DVB receiver as /devices/pci0000:00/0000:00:04.0/0000:03:00.0/0000:04:00.2/usb4/4-2/input/input3 [ 11.334319] dvb-usb: schedule remote query interval to 287 msecs. [ 11.334324] dvb-usb: USB DVB-T Device successfully initialized and connected. [ 11.334357] dvb-usb: found a 'USB DVB-T Device' in warm state. [ 11.334371] dvb-usb: will pass the complete MPEG2 transport stream to the software demuxer. [ 11.336039] DVB: registering new adapter (USB DVB-T Device) [ 11.355161] RTL2832U usb_init_bulk_setting : USB2.0 HIGH SPEED (480Mb/s) [ 11.596933] RTL2832U check_tuner_type : FC0012 tuner on board... [ 12.163908] DVB: registering adapter 3 frontend 0 (Realtek DVB-T RTL2832)... [ 12.165480] input: IR-receiver inside an USB DVB receiver as /devices/pci0000:00/0000:00:04.0/0000:03:00.0/0000:04:00.2/usb4/4-3/input/input4 [ 12.165606] dvb-usb: schedule remote query interval to 287 msecs. [ 12.165613] dvb-usb: USB DVB-T Device successfully initialized and connected. [ 12.165647] dvb-usb: found a 'USB DVB-T Device' in warm state. [ 12.165658] dvb-usb: will pass the complete MPEG2 transport stream to the software demuxer. [ 12.167379] DVB: registering new adapter (USB DVB-T Device) [ 12.185508] RTL2832U usb_init_bulk_setting : USB2.0 HIGH SPEED (480Mb/s) [ 12.425785] RTL2832U check_tuner_type : FC0012 tuner on board... [ 12.995998] DVB: registering adapter 4 frontend 0 (Realtek DVB-T RTL2832)... [ 12.996640] input: IR-receiver inside an USB DVB receiver as /devices/pci0000:00/0000:00:04.0/0000:03:00.0/0000:04:00.2/usb4/4-4/input/input5 [ 12.997422] dvb-usb: schedule remote query interval to 287 msecs. [ 12.997428] dvb-usb: USB DVB-T Device successfully initialized and connected. [ 12.997463] usbcore: registered new interface driver dvb_usb_rtl2832u here is the output from lspci:
sudo lspci -v -d 14f1:8852 02:00.0 Multimedia video controller: Conexant Systems, Inc. CX23885 PCI Video and Audio Decoder (rev 03) Subsystem: LeadTek Research Inc. Device 6f39 Flags: bus master, fast devsel, latency 0, IRQ 18 Memory at fe600000 (64-bit, non-prefetchable) [size=2M] Capabilities: [40] Express Endpoint, MSI 00 Capabilities: [80] Power Management version 2 Capabilities: [90] Vital Product Data Capabilities: [a0] MSI: Enable- Count=1/1 Maskable- 64bit+ Capabilities: [100] Advanced Error Reporting Capabilities: [200] Virtual Channel Kernel driver in use: cx23885 Kernel modules: cx23885 1 Answer
I have a Terratec Cinergy TStick+ (ID 0ccd:00d7).
None of brand/device drivers seem to work, and I instead had to use media build:
LinuxTV > use latest experimental drivers/patches
( link provides steps to install 'Media Build' driver. )
What shows up in lsusb, with this device onboard?
Can you provide output for:
lsusb
lsmod | grep dvb
dmesg | grep dvb
