I have installed the Ubuntu extension for Windows, but I run into troubles when I want to use gnuplot... I am just trying to plot a simple data file, but I get the following error :

QStandardPaths: XDG_RUNTIME_DIR not set, defaulting to '/tmp/runtime-julien_barbaud' qt.qpa.screen: QXcbConnection: Could not connect to display Could not connect to any X display. Could not connect to existing gnuplot_qt. Starting a new one. QStandardPaths: XDG_RUNTIME_DIR not set, defaulting to '/tmp/runtime-julien_barbaud' qt.qpa.screen: QXcbConnection: Could not connect to display Could not connect to any X display.

As you may guess, I am not veryfamiliar with this problem. Is there Something I should set up in my environment to fix this ?

EDIT: after the suggestion in comments, I tried to use set term postscript. The output is different, but still no plot...

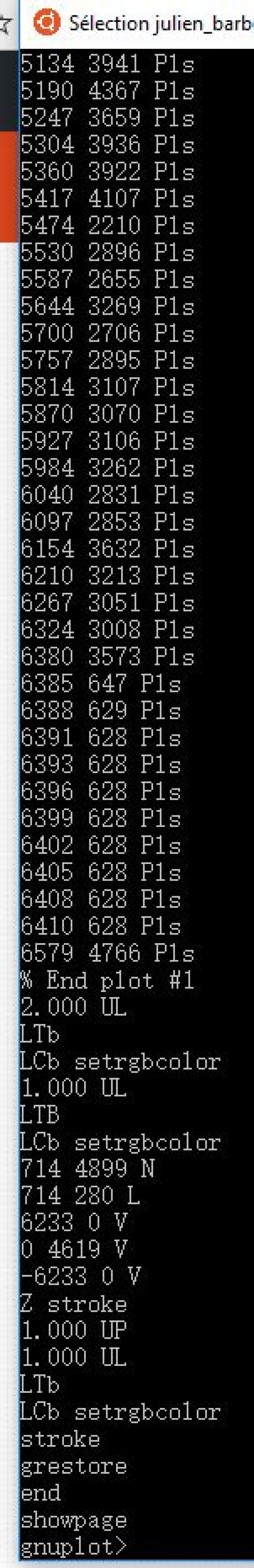

plot output after set term postscript

And after trying set term png, the plot command gives me this:

enter image description here

4

2 Answers

I could solve my problem by downloading Xming on my Windows system, so that linux can access X11 The qt terminal works well in this condition.

Thanks for the help !

2

Add

libmali-xlnx libmali-xlnx-dev packagegroup-petalinux-x11-dev

in rootfs configure.
Then execute

killall Xorg

(no need when running Xorg for the first time).
Finally run

export DISPLAY=:0.0 /usr/bin/Xorg -depth 16&

and then run the qt project.
